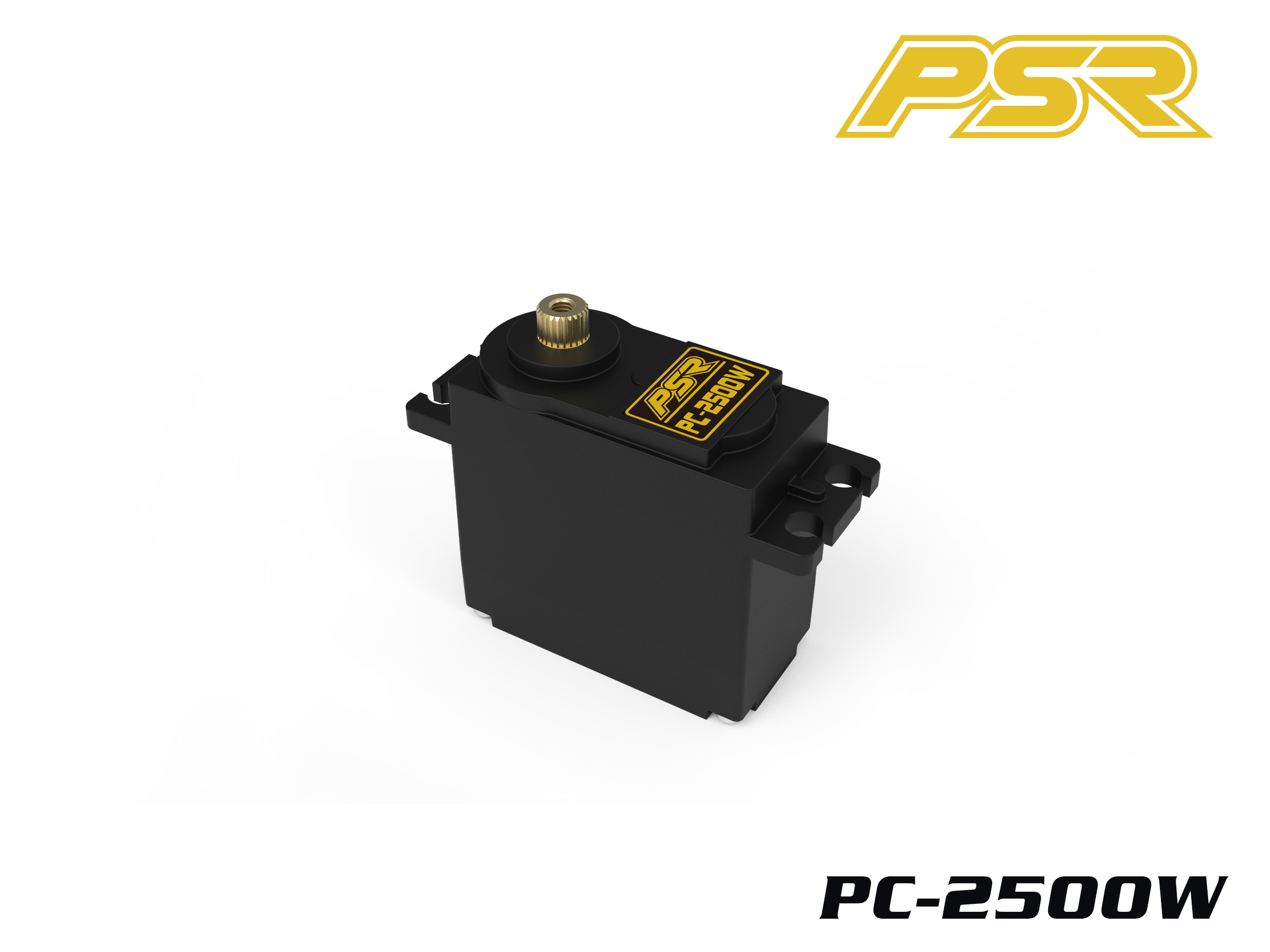

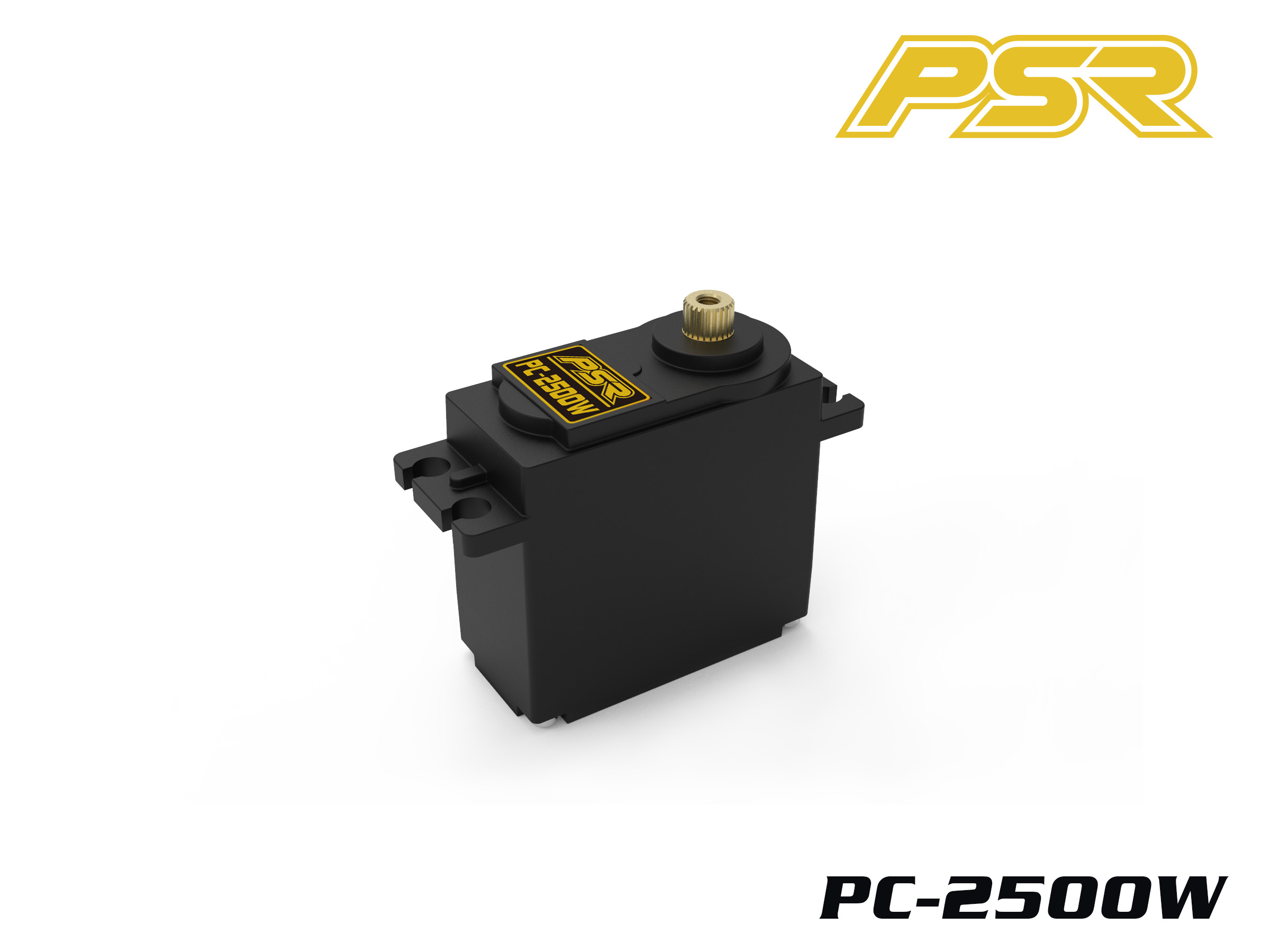

PC-2500 New HV DC Motor Digital Servo with Plastic case

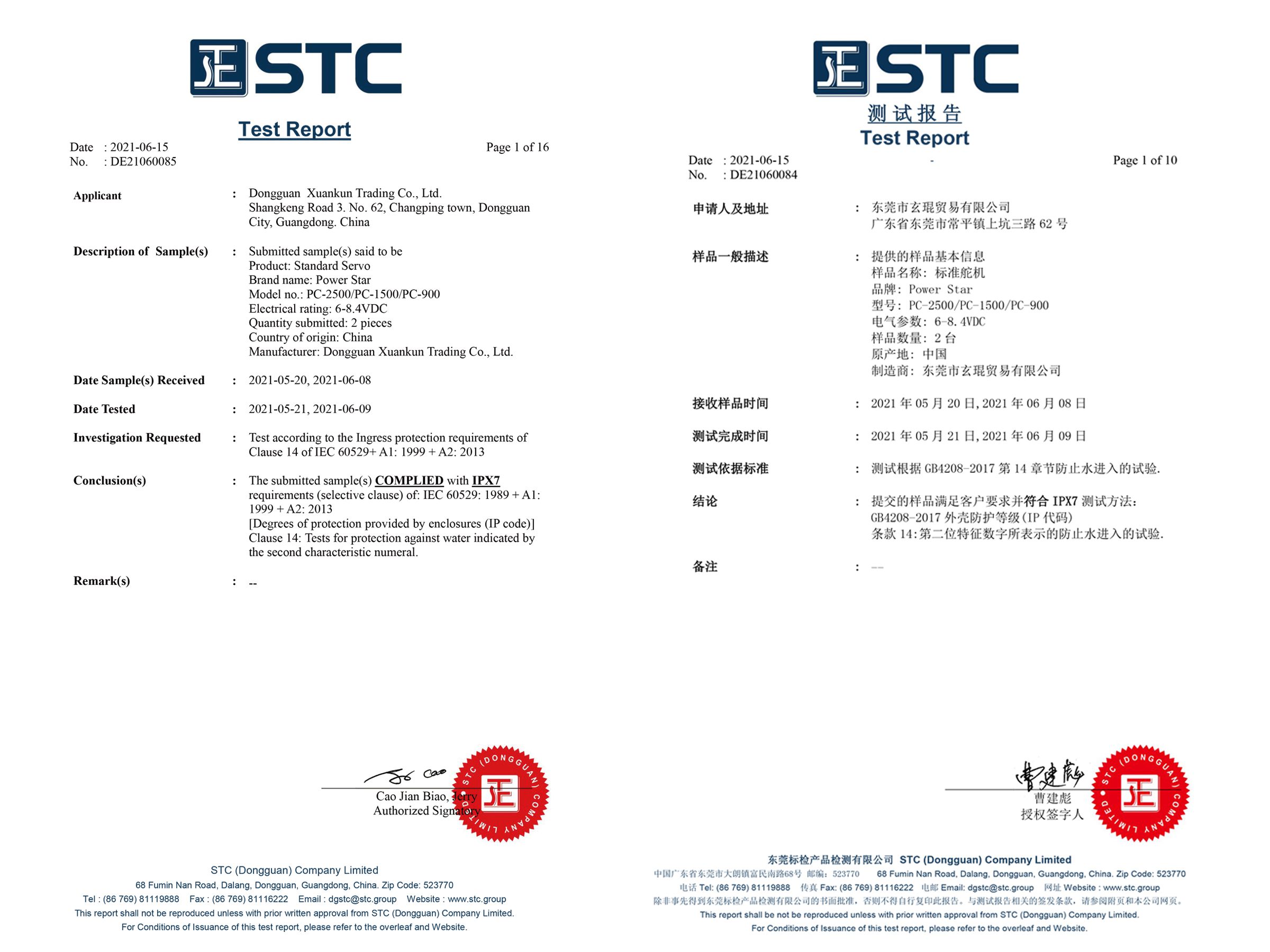

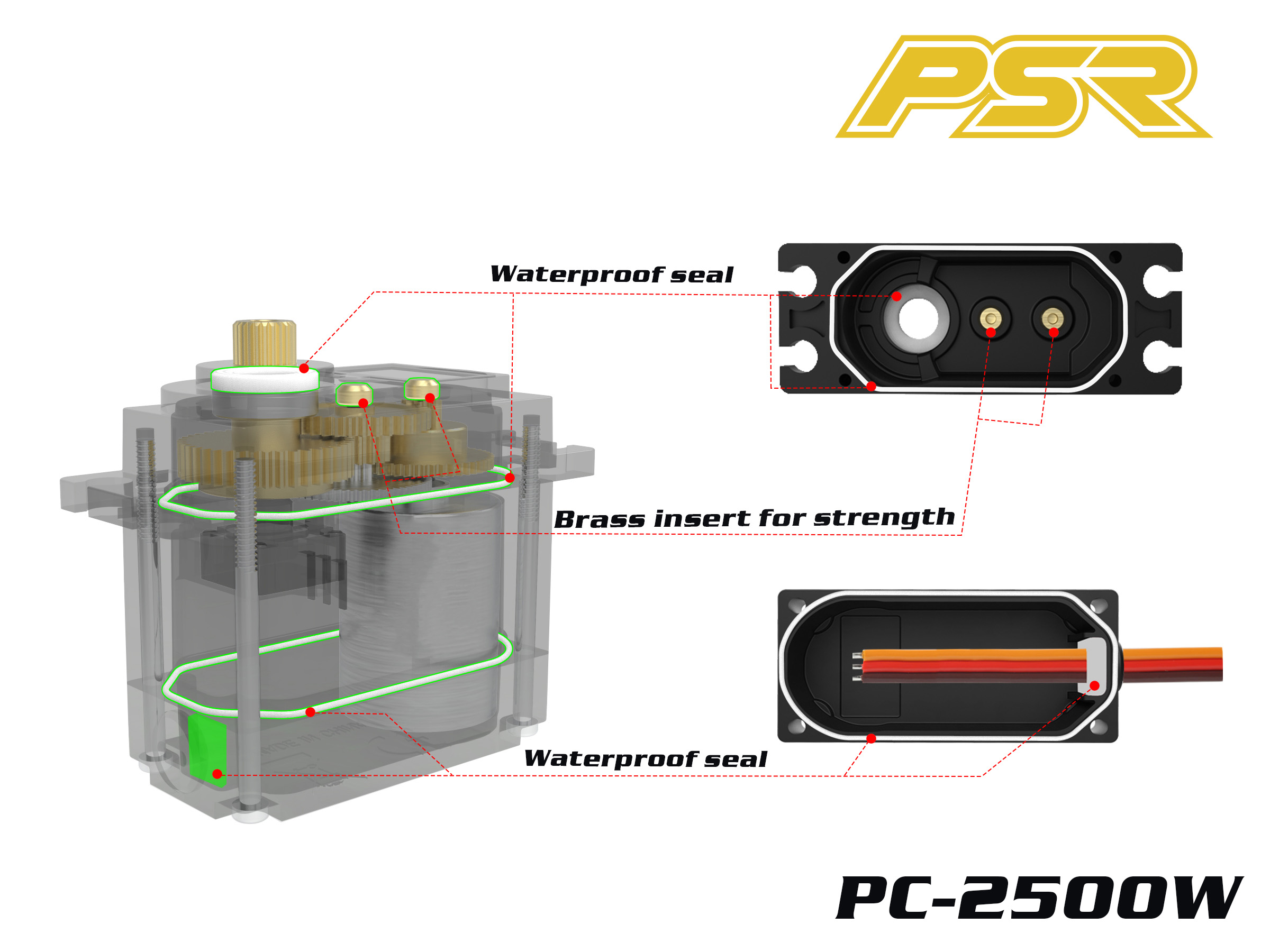

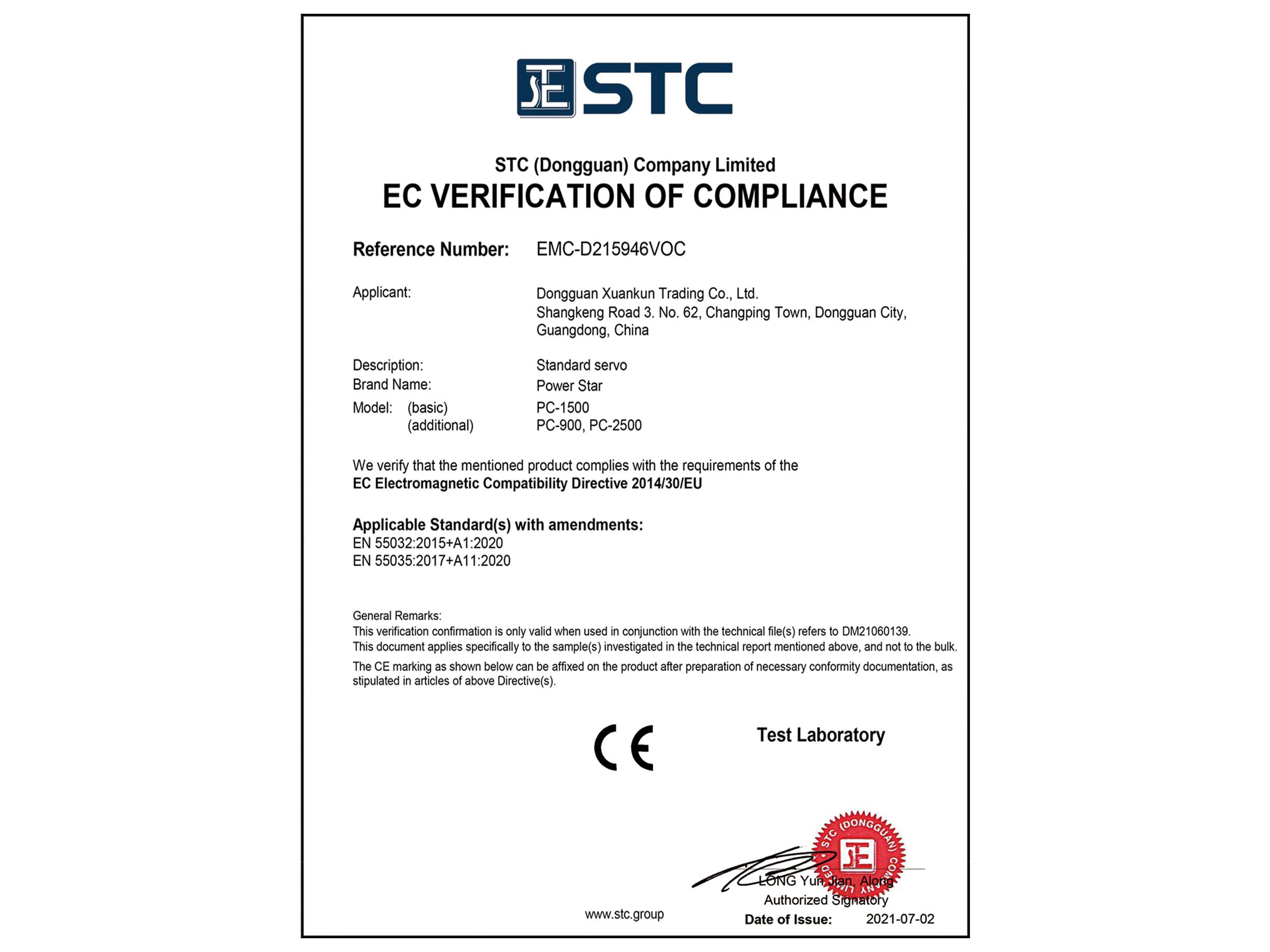

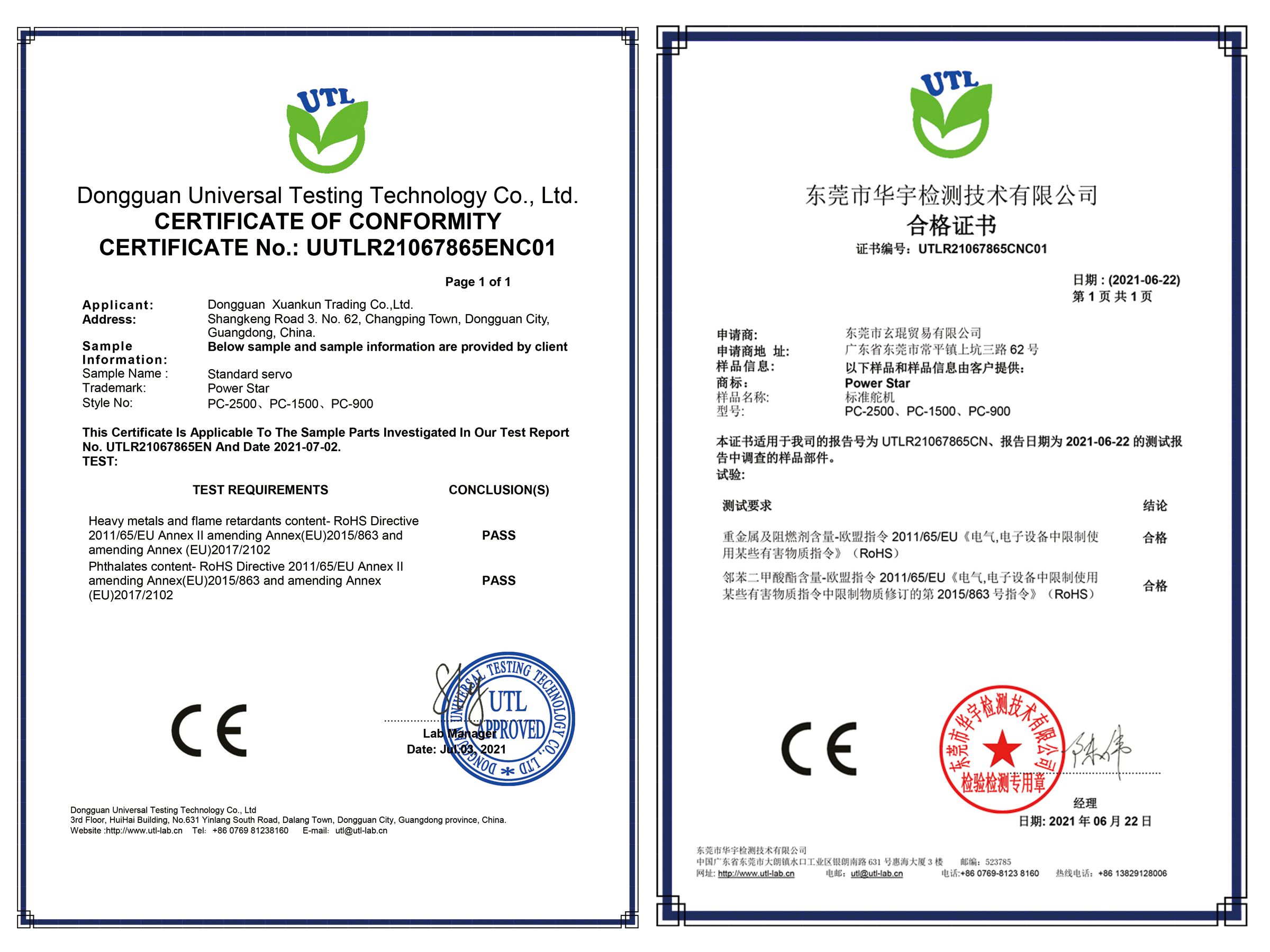

New Standard DC servo from Power Star is PC-900/PC1500/PC-2500 New High quality servo,Certified by CE & RoHS. FET motor drive,Potentiometer Angel sensor,Plastic Case, High-torque, metal-gear Standard servo with spring-style servo saver Water-resistant, enclosed receiver box High-power DC motor speed control Application for RC Car, RC boat, RC plane,Robot, Helicopter.

Brand: powerstar

Availability: 100

Torque(4.8V): 22.00 kg-cm /306 oz-in

Torque(6.0V): 25.0 kg-cm /347 oz-in

Torque(7.4V):28.0kg-cm /389 oz-in

Torque(8.4V):30.0 kg-cm /416 oz-in

Speed: 0.22 sec (4.8V) │0.2sec(6.0V)|0.18sec(7.4V)|0.16sec(8.4V)

Operating Voltage:4.8V ~ 8.4V

Weight: 64g ( no including accessory)

Bearing Type:Metal Bearing

Motor Type:DC

Gear Type:copper

Operating Temperature range:-20℃~60℃

Working frequency:1500μs / 333Hz

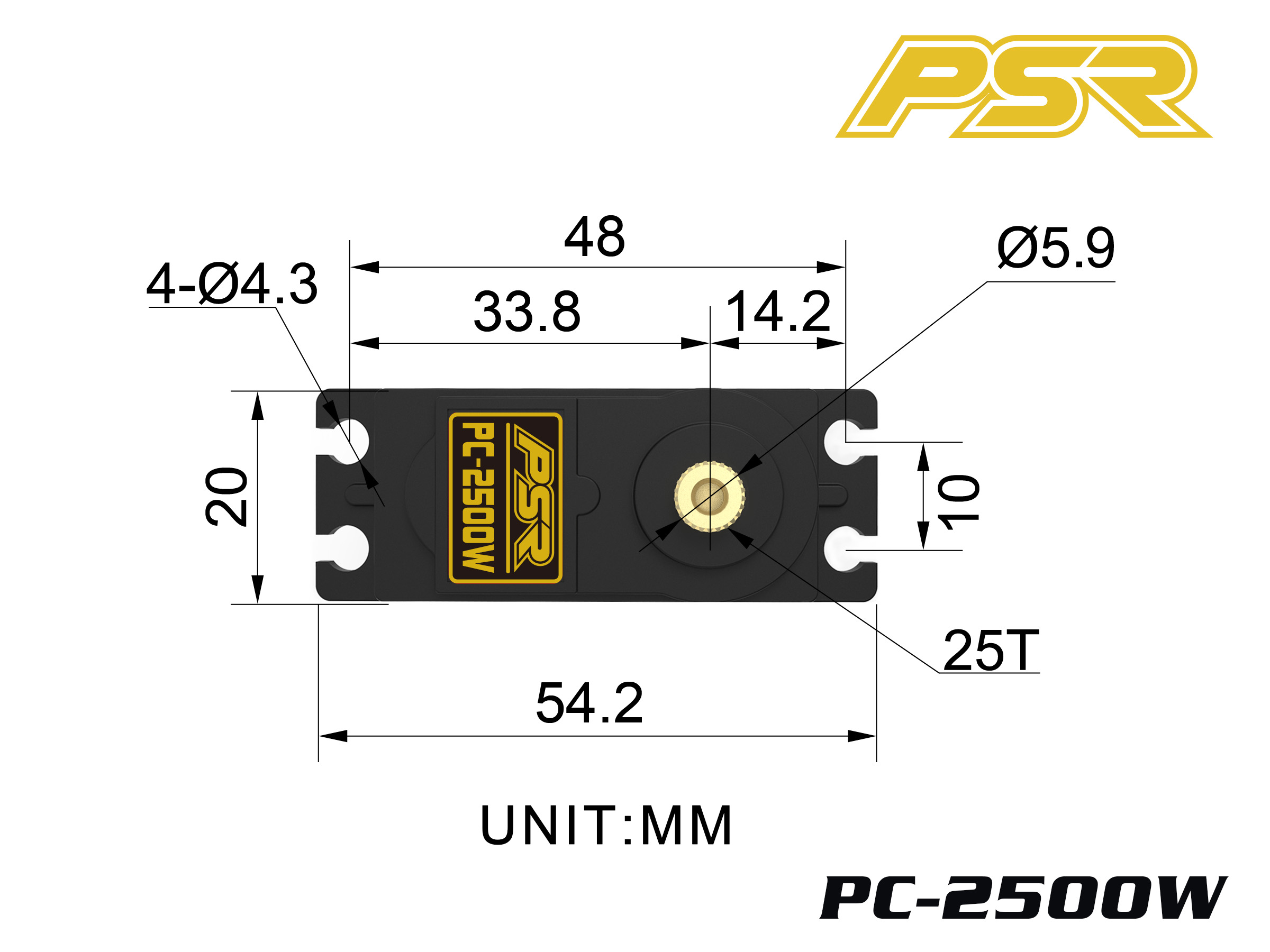

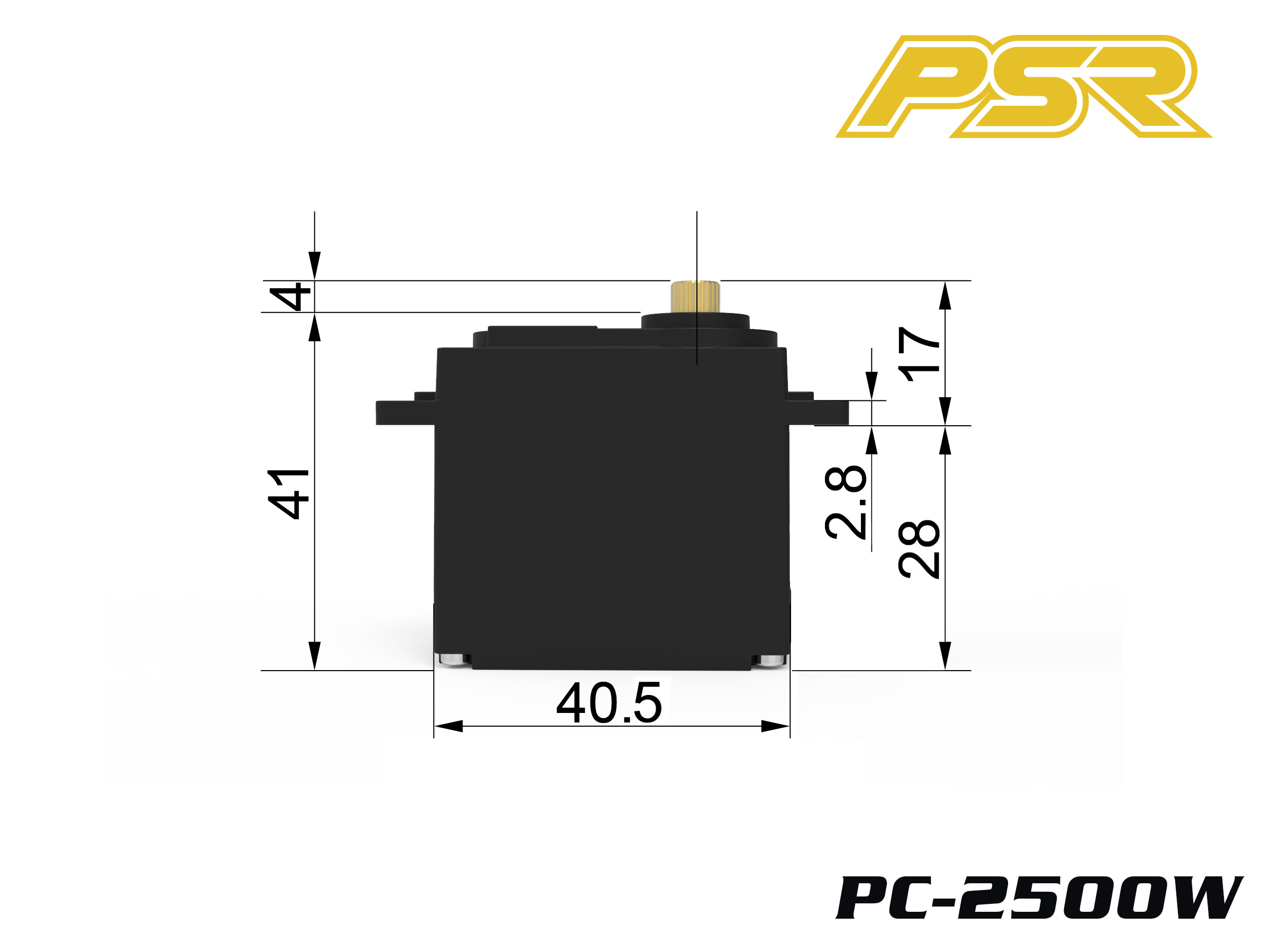

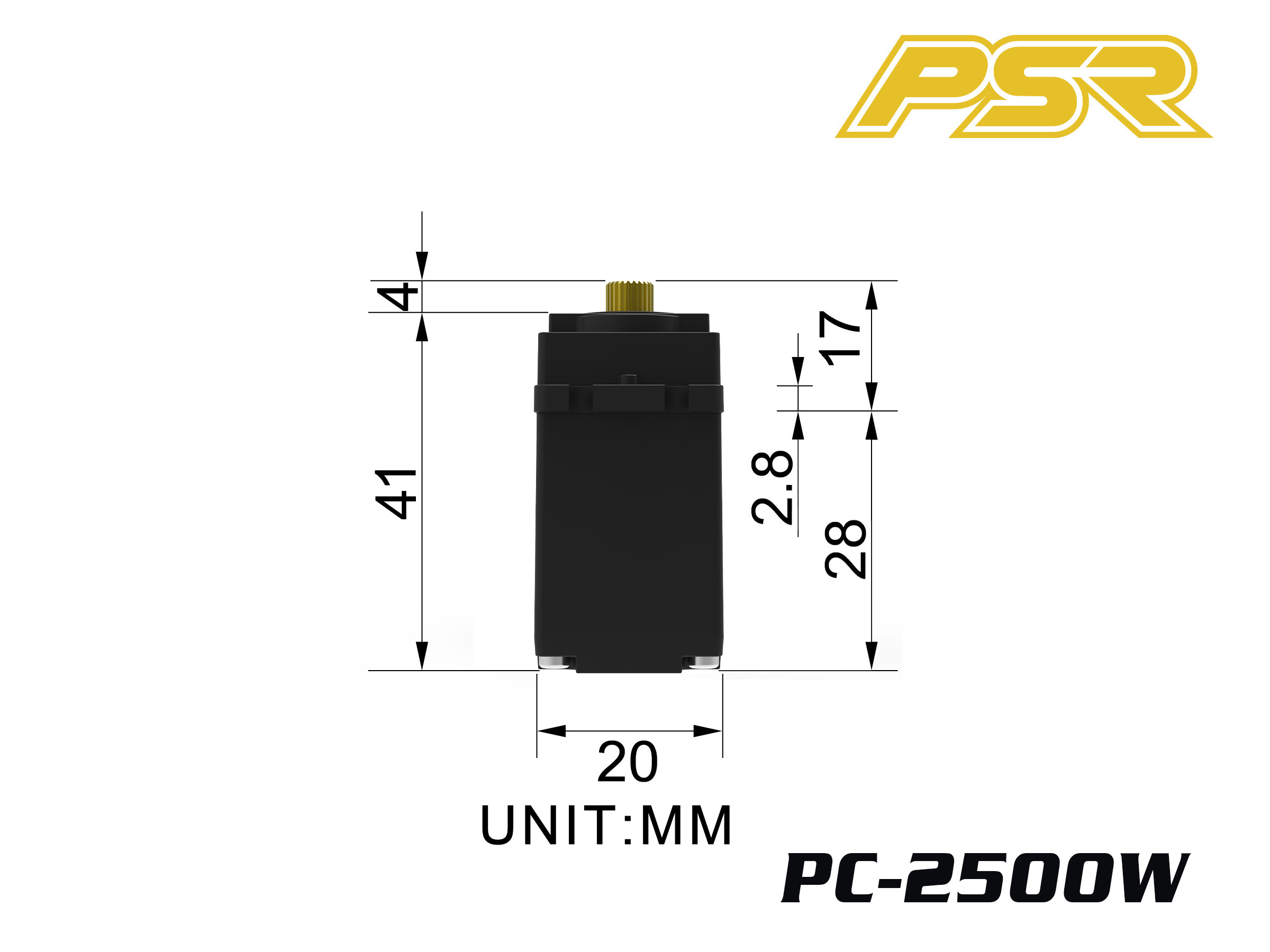

Size:40 x 20 x 40 mm
